Approval: CE, UKCA, cULus, EAC(Eurasian), TÜV
Sensor principle: magnetic
Coding level to ISO 14119: Low
Classification to EN 60947-5-3: PDDB
Suitable for series connection: no
Supply voltage (V): 24 V
Type of supply voltage U1: DC
Switching voltage: 24 V
Ambient temperature: -10 °C
Max. ambient temp. at 2000 m: +55 °C
Climatic suitability standard: IEC 60068-2-30
Humidity rating: 93 % r. h. at 40 °C
Perm. operating height ASL: 2000 m
EMC to standard ...: EN 60947-5-3
Vibration to standard ...: EN 60947-5-2
Acc. shock to standard1: 30g
Pollution degree clear. Creep.: 3
Protection type housing: IP65, IP67

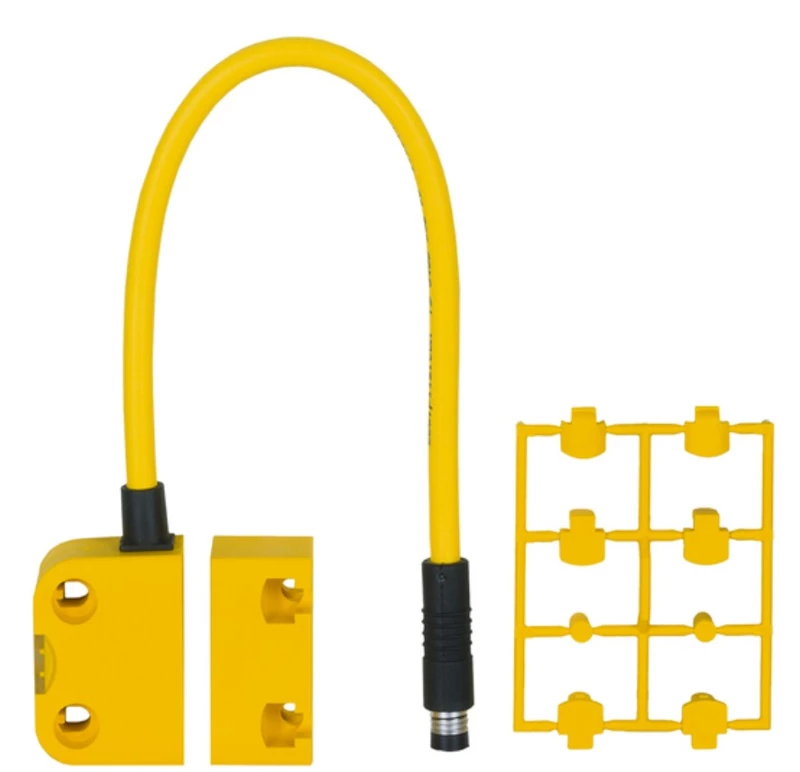

Type 1 actuator: PSEN ma1.4-10mm
Sensor can be flush-mounted: yes, follow installation guide
Connection type: M8, 8-pin male
Cable lines: Li9Y11Y 8 x 0.14 mm²
Housing material upper part: PBT
Height dimension: 37 mm
Width dimension: 26.4 mm
Depth dimension: 18 mm
Net weight: 53 g
Gross weight: 69 g
