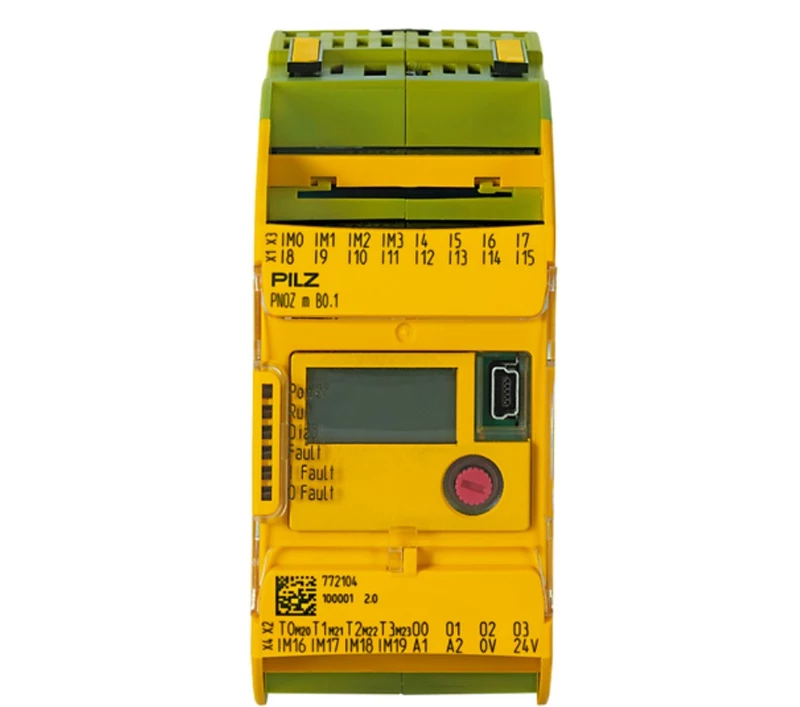

PILZ PNOZ m B0.1, 772104

Approval: CE, UKCA, cULus Listed, KOSHA, EAC (Eurasian), TÜV

Application range: Fail-safe

Purpose of U1: Module supply

Supply voltage (V): 24 V

Type of supply voltage U1: DC

Device circuit breaker U1: 6 A,60VDC,SCCR 10kA,UL498/CSA |  6 A, Automat, Char.B

Purpose of U2: Versorgung der HL-Ausgänge

Supply voltage U2: 24

Type of supply voltage U2: -20 %/+25 %

Potential isolation U2: yes

Permitted loads: Resistive, Inductive, Capacitive

Number of configurable I/Os: 8

Potential isolation of IO: No

Short circ. prot. n/safe S/C O: Yes

Voltage at 1 n/safe S/C O: UB - 2 V at 0.1 A

Number of digital inputs: 12

U input to EN 61131-2 Type 1: 24 V DC

Potential isolation input: No

Potential isolation of S/C O: Yes

S/C output short circuit proof: Yes

Number of test pulse outputs: 4

Ambient temperature standard: EN 60068-2-14

Ambient temperature: 0

Storage temperature standard: EN 60068-2-1/-2

Climatic suitability standard: EN 60068-2-30, EN 60068-2-78

Condensation permitted?: Not permitted

Perm. operating height ASL: 2000 m

EMC to standard ...: EN 61131-2

Vibration to standard ...: EN 60068-2-6

Acc. shock to standard1: 15g

Clearance & creepage dist. To: EN 61131-2

Overvoltage category: II

Pollution degree clear.&creep.: 2

Protection type standard EN: 60529

Protection type, mounting: IP54

Protection type, housing: IP20

Terminal protection type: IP20

Potential isolation 1 between: HL-Ausgang und Systemspannung

Type of potential isolation 1: Basic Insulation

Mounting position: horizontal on DIN rail

DIN-rail dimensions: 35 x 7.5 EN/IEC 60715, 35 x 15 EN/IEC 60715

Housing material lower section: PC

Housing material front plate: PC

Housing material upper part: PC

Connection terminal: Spring-loaded terminal, Screw terminal

Terminal style: plug-in

Flex. cond. c/s AWG info: 24 - 12 AWG

Height dimension: 101.4 mm

Width dimension: 45 mm

Depth dimension: 120 mm

Net weight: 220 g

Gross weight: 230 g
